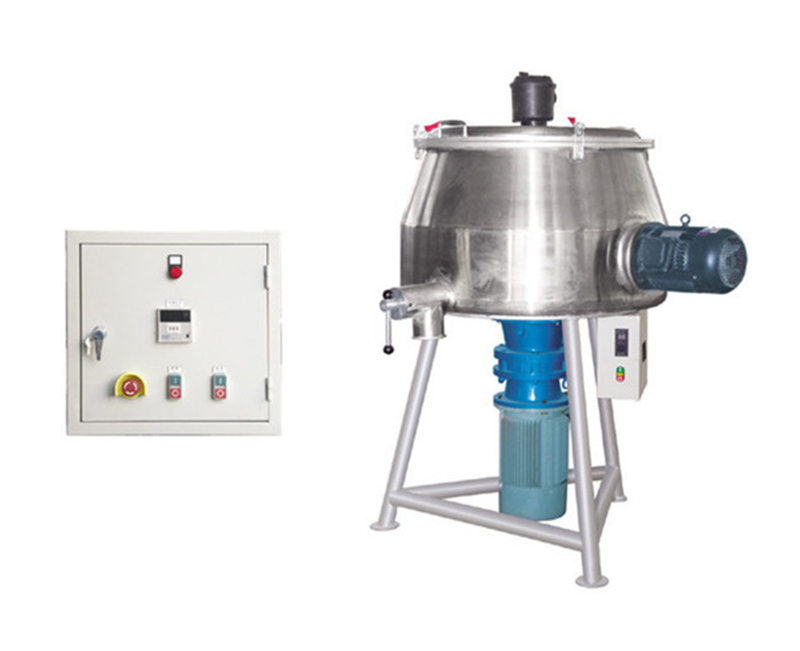

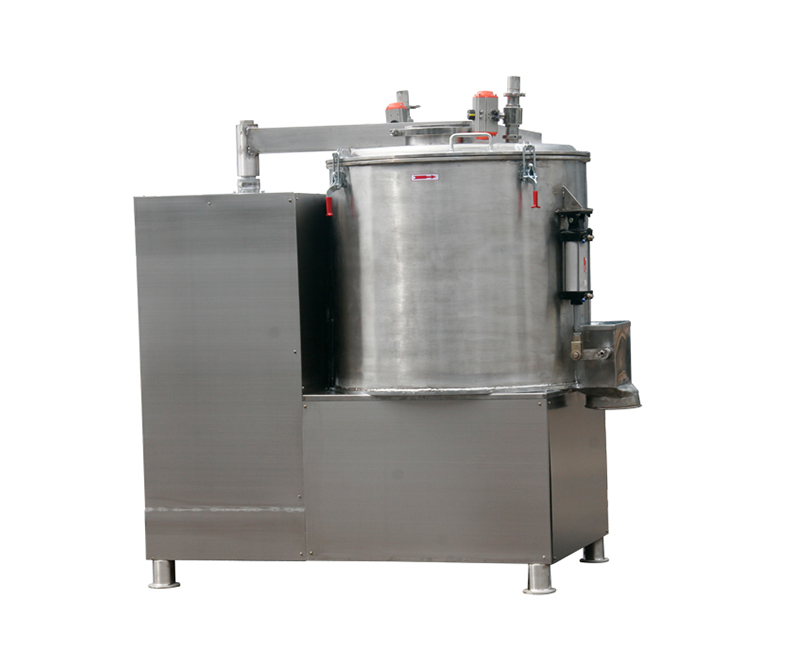

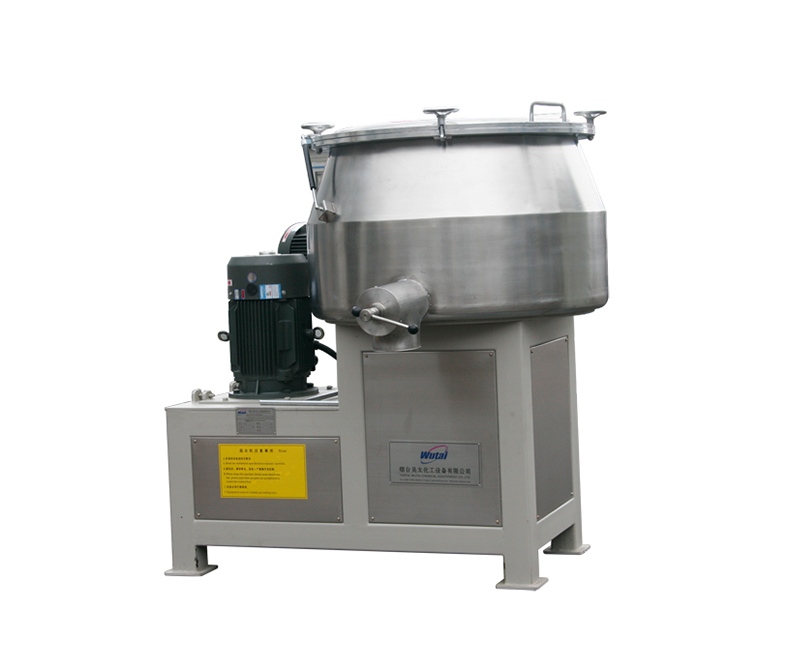

This machine is suitable for mixing solid coarse and lumpish multi-component material. The material will be crushed during mixing. Pigment and chemical auxiliary disperse homogeneously, machine can be dismounted easily. there is no powder leakage because of superior sealing.
Main Features:
*Easy cleaning , convenient for color changing.
*Mixing homogeneously and crushing efficiently
*Adjustable mixing time preset and controlled accurately
*Easy discharging, high output
*There is over loading and safety protection for motors, Operation safety
Specification
|
Model |
Output/tank(kg) |
Mixing motor(kw) |
Crushing motor (kw) |
Mixing time (Min/container) |
Dimension (L*W*H m) |
|
HG-100 |
80 |
5.5 |
4 |
4-6 |
Ø 0.7*1.3*1.38 |
|
HG-150 |
150 |
7.5 |
4 |
4-6 |
Ø 1.2*1.6*1.6 |
|
HG-300 |
300 |
15 |
5.5 |
4-6 |
Ø 1.3*1.5*1.8 |
|
HG-500 |
500 |
18.5 |
7.5 |
4-6 |
Ø 1.6*1.6*1.9 |
|
HG-600 |
600 |
22 |
7.5 |
4-6 |
Ø 1.6*1.6*1.9 |
|
HG-800 |
650-800 |
30 |
7.5/2 |
4-6 |
Ø 1.9*1.9*2.0 |
|
HG-1000 |
900-1000 |
45 |
7.5/2 |
4-6 |
Ø 2.0*2.2*2.5 |
